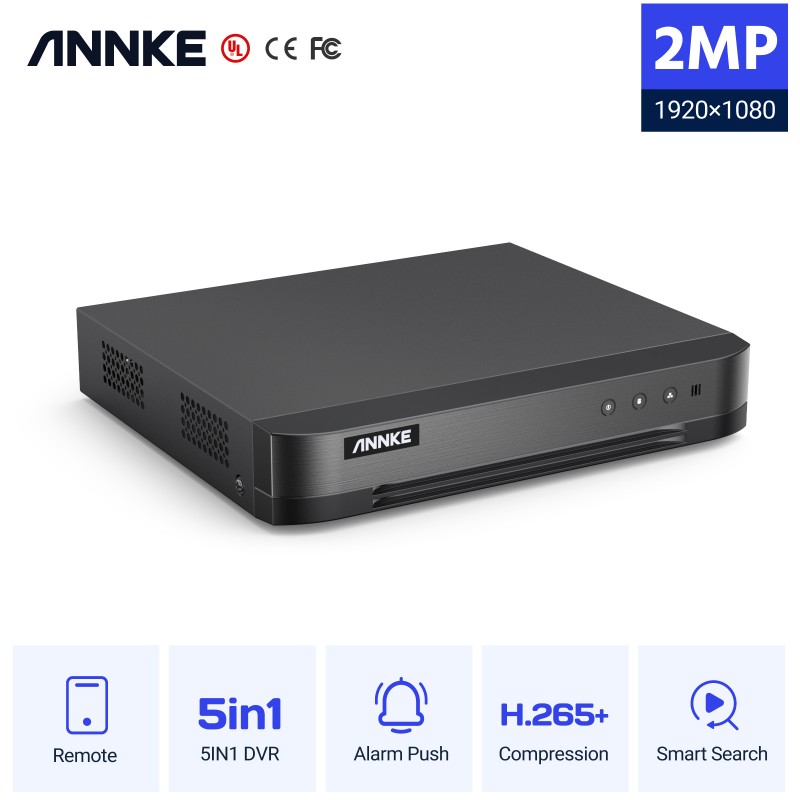

ANNKE DT61BS Καταγραφικό 16 καναλιών & 2 IP
01030330
Νέο προϊόν
Καταγραφικό 16 καναλιών & 2 IP - 4in1- 2 Megapixel (1920x1080)
Χαρακτηριστικά
| RS-485 | OXI |
| Αριθμός εισόδων video | 16 |
| Είσοδοι/Έξοδοι ήχου | 1/1 |
| Αριθμός εισόδων IP | 2 |
| Είσοδοι/Έξοδοι συναγερμού | ΟΧΙ |
| Ανάλυση εγγραφής | Έως 2ΜP (1080p) |
| Έξοδοι video | HDMI-VGA |
| Τεχνολογία συμπίεσης | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Καρέ καταγραφής | 720P@25fps |
| Σκληρός δίσκος | Δέχεται 1 HDD έως 10TB |
| Τροφοδοσία | 12VDC |
| Κατανάλωση ρεύματος | 10W |
| Ποντίκι | Ναι |
| Εγγύηση (μήνες) | 24 |
| Τύπος εγγύησης | Carry In |
Άλλες πληροφορίες

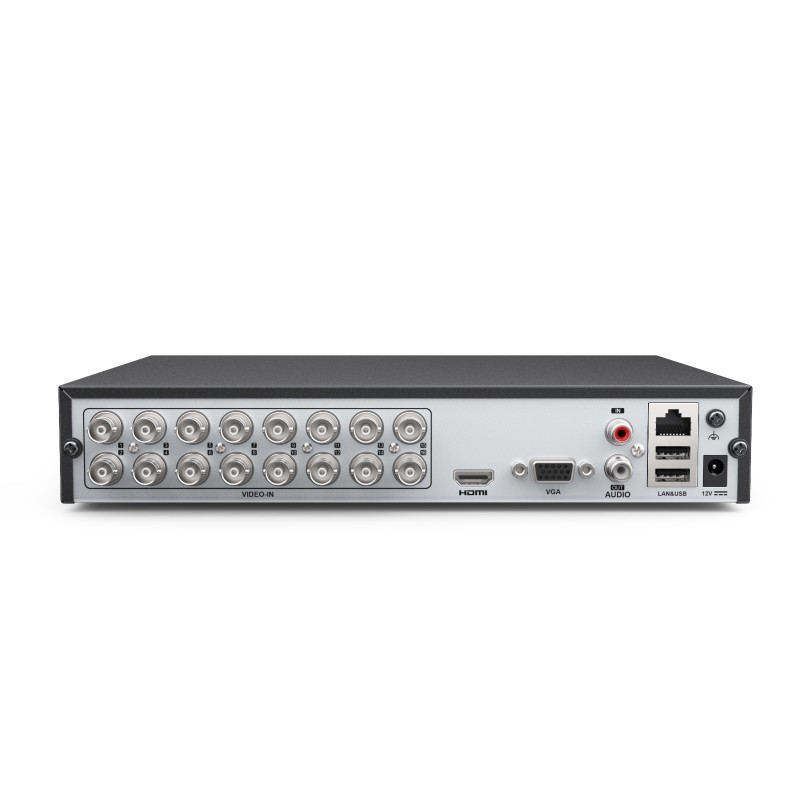

| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | BNC interface (1.0Vp-p, 75 Ω)connection; | |
| Supported camera types: | Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30 Support AHD input: 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Recording resolution: | 1080p/720p/VGA/WD1/4CIF/CIF | |
| Frame Rate: | Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N) | |
| Video Bit Rate: | 32 Kbps ~ 4 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 64 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, ANNKE VISION & Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 1 SATA Interface | |
| Capacity: | Up to 10 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interfaces | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Working Temperature: | -10 oC to +55 oC (14 oF to 131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 260 × 222 × 45 mm(10.2 × 8.7 × 1.8 inch) | |
| Weight: | ≤ 1.1 kg (2.4 lb) | |
